🧭 Why Bar Layouts Make or Break Your Space

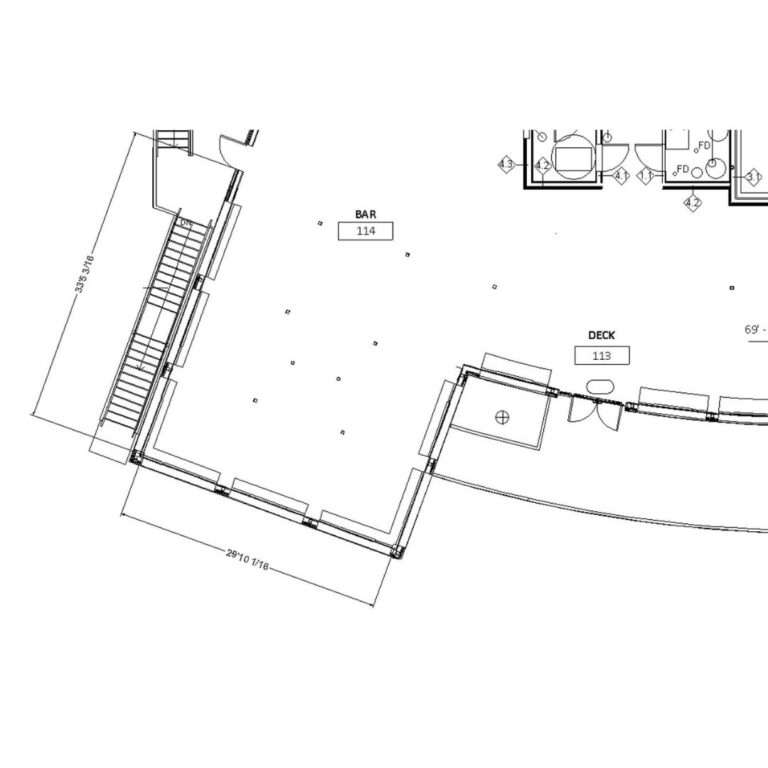

How are commercial bar layouts planned? You think you have enough space. That empty 1,000-square-foot room feels cavernous—until you start penciling in a bar, a drink rail, seating, and a service aisle. Suddenly, you’re squeezing past imaginary barstools and rethinking your dream layout.
Bar layouts aren’t just about fitting furniture into a room. They’re a calculated balance of functionality, comfort, and code. One misstep and your bar becomes a bottlenecked nightmare, not a high-performance hospitality hub.
Before a single piece of equipment is ordered or a stool is placed, understanding layout clearances is your first line of defense. This guide breaks down the essential dimensions and planning strategies that let your vision flow—literally.
📐 What Is a Bar Layout—And Why Does It Matter?
A bar layout is the strategic map of where every component in a bar lives—from the equipment behind the counter to the distance between your back bar and the nearest guest’s elbow. It’s the architectural choreography that determines how your staff moves, how guests interact, and ultimately, how efficiently your bar makes money.
A poor layout leads to chaos: bartenders bumping into each other, servers struggling to navigate crowded aisles, and customers feeling cramped instead of welcomed. These aren’t just comfort issues—they’re revenue leaks.
The right bar layout validates your entire concept before you break ground. Whether you’re building from scratch or reworking a tired setup, starting with a clear layout plan gives you confidence that your space will work in the real world—not just on paper.

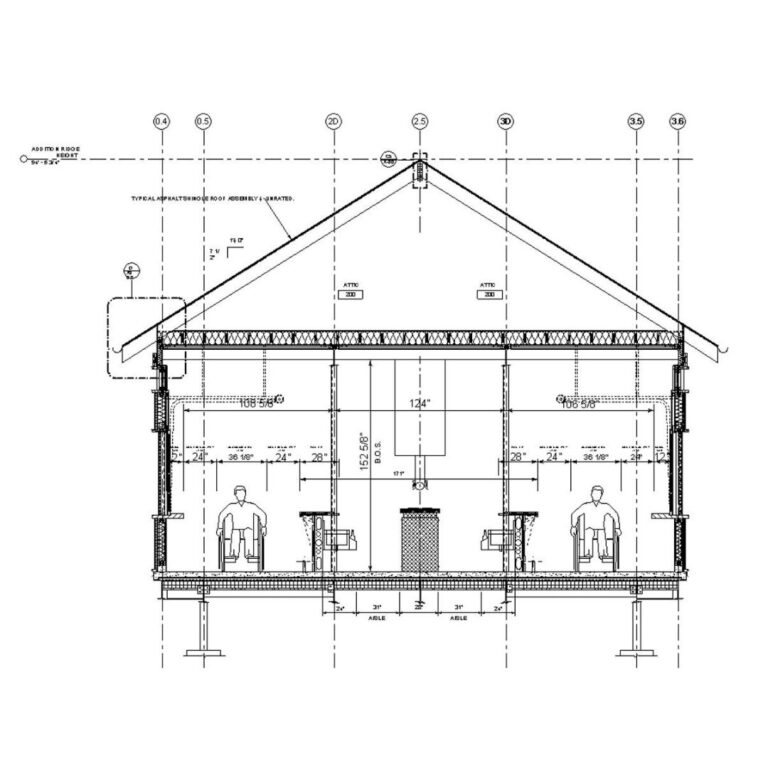

🔎 The Cross-Section Blueprint—Your First Step in Bar Planning
The first step in planning your bar layout isn’t CAD software or 3D renderings—it’s a simple cross-sectional sketch. Think of it as a side view of your bar from floor to ceiling, outlining every key component in the order they’ll exist in space.
Why start here? Because it forces you to visualize the actual clearances required between the back bar, the underbar equipment, the customer side, and all the activity zones in between. No guesswork—just dimensional reality.

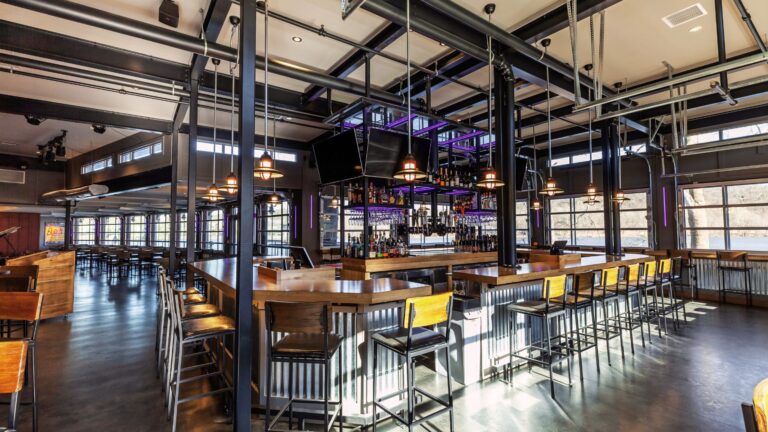

Consider a common scenario: the island bar with drink rail seating on three sides. It sounds luxurious… until you realize that island bars demand generous aisle space on all sides. What felt like a roomy 1,000-square-foot blank canvas starts to look a lot smaller. That’s where your cross-section earns its keep—it helps you flag spatial conflicts before they become construction problems.

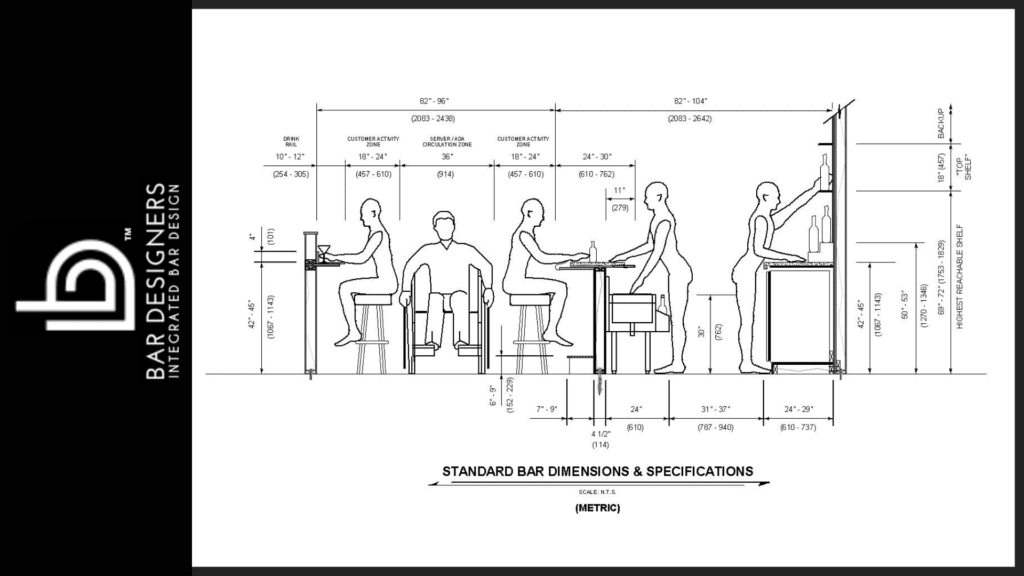

📏 Universal Clearance Standards for Commercial Bar Layout
Bar layout begins with non-negotiable clearances—the foundational measurements that ensure guests are comfortable, staff can move freely, and no one ends up contorting their way through a shift.

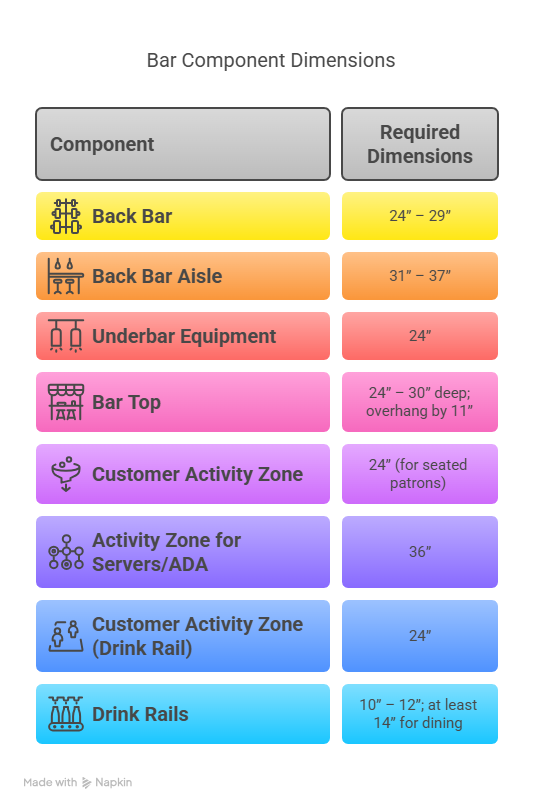

Here’s a breakdown of the essential dimensions you’ll need to build around (refer to the table below):
- Back bar depth: 24”–29”
For shelving, liquor displays, sinks, and storage. - Back bar aisle: 31”–37”
Minimum space required for staff to move behind the bar efficiently. - Underbar equipment zone: 24”
Where refrigeration, ice bins, and cocktail stations live. - Bar top depth + overhang: 24”–30” bar top with 11” overhang on the bartender side.
Gives customers elbow room and ergonomic reach. - Seated customer activity zone: 24”
Space occupied by a guest sitting at the bar. - Server/ADA activity zone: 36”
Essential for compliant access and server movement. - Drink rail clearance (for standing/seated guests): 24”
Just like a bar stool zone—guests need room to breathe. - Drink rail width (serving/dining): 10”–12” minimum; 14” for food
Don’t skimp if you’re serving anything beyond a beer.
💡 Don’t eyeball it—design with tape measure precision. These dimensions are the difference between a smooth shift and a service disaster.
STUCK ON YOUR BAR DESIGN? CALL US NOW…
🔁 How to Apply These Standards to Real-World Bar Layouts

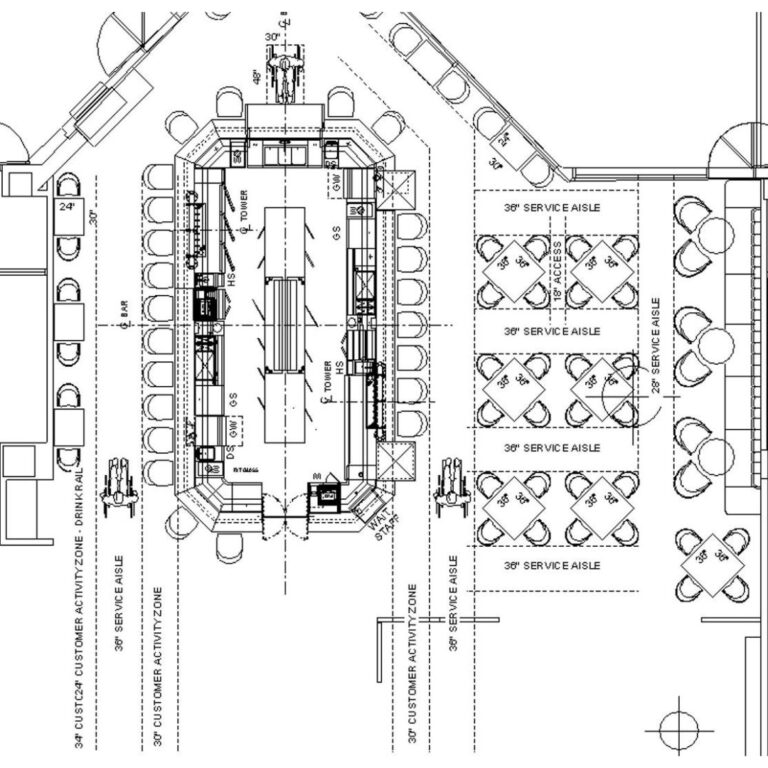

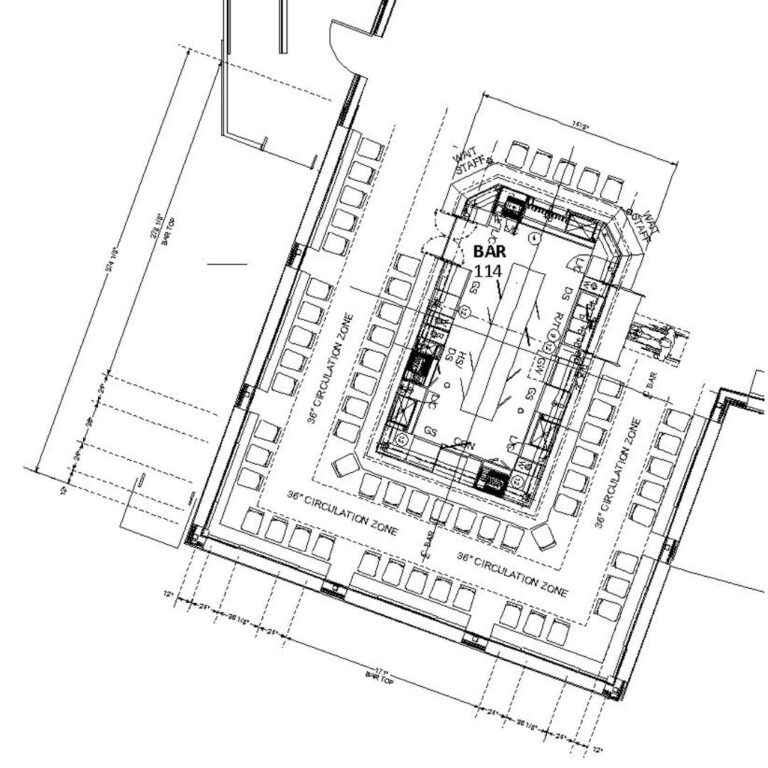

Let’s revisit the 1,000-square-foot bar layout mentioned earlier. On paper, that footprint looked ideal. But when the owner asked for a center island bar with seating on three sides, it started to get complicated.
Here’s how the universal clearances helped test the concept:
- Island bars require multiple 36” service aisles around the perimeter.
- Each drink rail needs 24” of guest activity zone.
- Add in underbar depth and customer overhang, and suddenly, the spatial puzzle tightens fast.
By applying clearance standards from the start, it became clear that a full island bar with seating on all sides would overwhelm the space. The solution? Compromise with seating on two sides, use tighter but compliant back bar aisles, and reserve one side for standing patrons or high-top tables.
Pro Tips for Tight Bar Layouts:
- Use wall-mounted back bars to reclaim aisle space.
- Swap island bars for L- or U-shaped bars to condense circulation zones.
- Design multi-use spaces (e.g., a drink rail that doubles as standing bar space).
- Keep service aisles sacred—don’t sacrifice flow for a few extra seats.
Krowne Alchemy Series: Precision Performance for the Modern Bar Engineered for flawless workflow across the Krowne ecosystemHave you heard about the Krowne Alchemy Series of underbar equipment? Imagine an underbar station so refined, it feels like it was designed by a Michelin-star chef and an Indy crew. Sleek lines. Sculpted edges. Storage in all …
Let’s be honest: trying to find real bar design pricing online is like asking a magician to reveal the trick. Most firms dodge the question entirely, hiding behind vague phrases like “custom quotes” or “tailored solutions.” But you deserve more — especially if you’re about to make one of the biggest investments of your …
🚫 Common Mistakes to Avoid in Bar Layout Planning
Even the most beautifully designed bar can fall flat if critical layout decisions are overlooked. Here are the most common missteps that sabotage performance and guest experience:
❌ Overcrowding with stools or drink rails
It’s tempting to cram in as many seats as possible—but every extra stool that blocks an aisle or clutters the customer zone slows service and kills comfort. More isn’t always better.
❌ Ignoring ADA and server movement zones
That 36-inch clearance isn’t a suggestion—it’s the law. Squeezing pathways too tight compromises both compliance and efficiency, especially during peak service hours.
❌ Neglecting underbar equipment spacing
Your bar team needs space to move, shake, scoop, and pour—without playing Tetris with their tools. Cramming ice bins or beer taps too close leads to workflow breakdowns.
❌ Designing without real cross-sectional review
Too many layouts are approved based on floor plans alone. A cross-section reveals vertical and horizontal spacing that can’t be seen from a bird’s-eye view—don’t skip it.
✅ Pro Tips for Functional, Guest-Ready Layouts
Now let’s flip it—here’s what the pros do to make their bar layouts seamless, efficient, and revenue-ready:
🔧 Think like a bartender
Every piece of equipment should be within reach, not a few steps away. Stations should feel like command centers, not obstacle courses.
🌬️ Leave breathing room in service aisles
Don’t cut corners on movement space. A little extra room in the service aisle can be the difference between smooth operations and a service trainwreck on Friday night.
🥂 Match layout to concept
Design flows differently in a sports bar than in a craft cocktail lounge. Align your layout to your service style, guest pacing, and product focus.
🚪 Don’t forget storage and access points
It’s not just what guests see. Back-end functionality—like keg storage, trash access, or back bar replenishment—needs to be mapped and efficient too.
🔚 Conclusion: The Bottom Line on Bar Layouts
Planning a commercial bar layout isn’t about guesswork—it’s about getting every inch right. The clearances you choose directly impact how your bar looks, feels, and performs.
Use the standards. Sketch the cross-section. Visualize the experience from both sides of the bar.
🔧 Before you break ground, make sure your bar layout clears every hurdle.
➡️ My Favorite Design Reference Source: Human Dimension & Interior Space

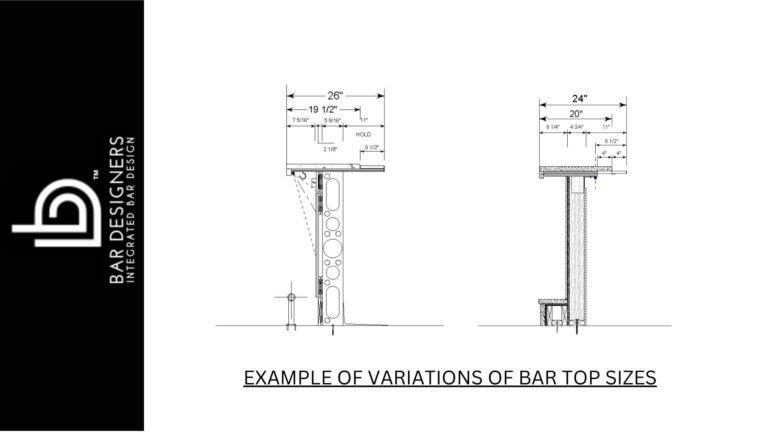

📐 Bonus: How to Calculate the Correct Bar Top Depth
Designing a bar top isn’t just about picking a number—it’s about calculating clearances that deliver both ergonomics and visual balance.
To find the right bar top depth, add up these three elements:
-
Interior overhang (including drink rail): Always 11″ from the inside face of the bar die. This never changes, no matter the drink rail size—it’s what gives your guests comfortable reach and posture.
-
Bar die thickness:
-
Use 5″ for traditional stick-built (2×4 framed) bar die.
-
Use 7″–8″ for modular bar die systems.
-
-
Exterior overhang (customer side): Typically 6″–8″, depending on design aesthetic and how much elbow room you want to provide
🧮 Example Calculation:
-
11″ (interior) + 5″ (bar die) + 8″ (exterior) = 24″ bar top depth (minimum).
-
A 26″ top is more common in our bar layouts.
-
For curved or elliptical bars, 30″ depth may be necessary to maintain visual symmetry and guest comfort.
💡 Pro tip: No matter what drink rail depth you choose, the interior overhang remains 11″. It’s all about maintaining reach and posture for both standing and seated patrons.
❓ Frequently Asked Questions About Bar Layouts
- What is the ideal aisle width behind a commercial bar?
For smooth operations and staff comfort, the back bar aisle should be between 31” and 37”. This clearance allows bartenders to move efficiently, especially during peak service times, and is a key part of any functional bar layout. - How much space should I leave for customers seated at the bar?
You’ll want to allow 24 inches per guest in the customer activity zone. This includes legroom, stool placement, and comfortable spacing at the bar top—critical for both experience and efficiency. - Do I need to include ADA clearances in my bar layout?
Absolutely. Every bar layout must incorporate at least one 36-inch-wide ADA-compliant activity zone for accessible service. Skipping this step can put you out of code and alienate guests with mobility needs. - How deep should a commercial bar top be?
The standard depth for a bar top is 24” to 30”, with an 11” overhang on the bartender side. This ensures drinks, food, and elbows stay comfortably in bounds. - What’s the first step in planning a commercial bar layout?
Start with a cross-sectional sketch. It’s the best way to visualize how all components—equipment, aisles, guest zones—interact in 3D space. This step is often skipped but is essential for a successful bar layout that actually works.
