BAR LIGHTING FOR BAR DESIGN AND WHERE TO PURCHASE

Cabaret Design Group

What are the top bar lighting products for bar design? Today we’ll discuss the most popular lighting for bar design and recommendations where to purchase them.

Are you a bar owner in search of some new lighting ideas? There are so many lighting products it can be overwhelming. What about that LED lighting everyone is talking about? You see LED lighting all over the internet, but where does one begin to figure it all out?

I don’t know that there’s a clear-cut winner, in terms of brand, but in terms of category I would have to say that LED lighting is the most popular. Most people think of LED lighting as the narrow strips of tiny colored bulbs (called ‘lamps’) frequently seen along soffit edges, under bar tops, etc. Nowadays, however, it seems that nearly every type of fixture has been adapted for an LED lamp, a trend that has emerged over the past five years. There are several reasons for this:

  • The efficiency of LED lighting makes it extremely attractive for bars.
  • As the demand for LED lighting has increased the price has decreased.
  • With increased demand, lighting manufacturers are offering a wider range of products.
ARCHITECTURAL BAR LIGHTING IDEAS
Photo depicting architectural pendant lighting and LED lighting for liquor bottle displays

LED LIGHTING OFFERS A MAINTENANCE ADVANTAGE

Most bars aren’t set-up with maintenance staffs, so it’s appealing to purchase products that have exceptional durability. For instance, the lowest-rated LED lamps are typically rated at 50,000 hours. This means that an average LED can be operated 16 hours per day for 8.6 years! As I mentioned in a previous edition of Design Buzz (which can be read here), in 2007 the U.S. Energy Code mandated a higher standard that will ultimately require compliancy, which typically occurs when building permits are pulled.

In spite of the appeal of LED lamps, other types of lamps are still commercially available.

Photo of LED Pendant Lighting for Bar Design
Photo of LED Pendant Lighting for Bar Design

TOP 5 LIGHTING PICKS FOR BAR DESIGN

There are a ton of choices when selecting bar lighting, and they all fall into the class known as commercial lighting. It’s important to note that the term commercial lighting means different things to different people.



HOW ENGINEERS SPECIFY LIGHTING PRODUCTS

Among the engineering and architectural community, commercial lighting is a class whose specifications are very sophisticated: every aspect of a typical fixture, including trim, finish and lamp, is specified. This is true architectural lighting and the cost of an average fixture can be several hundred dollars, which is unattractive to most bar owners.


QUALITY COMMERCIAL LIGHTING WITHOUT THE FRILLS

Given the high cost and tedious nature of the above, an intermediate class of architectural lighting was developed for the consumer in mind, which combines styling with limited options, and is manufactured offshore. This type of lighting is much more affordable and to the untrained eye it appears very similar to the aforementioned. Because of the limited options, fixtures in this class can be shipped on fairly short notice, and at a fraction of the price.

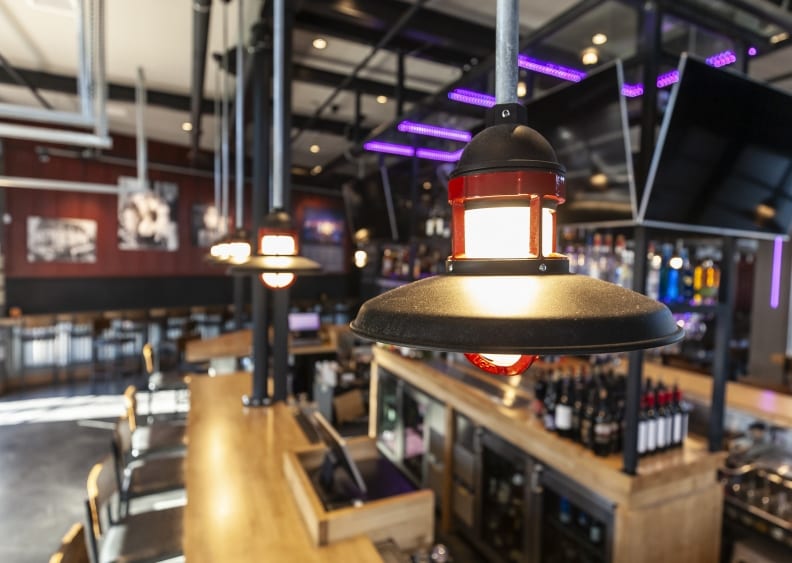

Photo of pendant lighting above bar
Pendant lighting is perfect above bar tops

MY RECOMMENDATIONS FOR INTERMEDIATE COMMERCIAL LIGHTING

Two companies who do quite an excellent job with this class are Liton Lighting and Con-Tech Lighting. I’m familiar with the product offerings of both companies and specify them frequently. The following are my top picks for bar design, broken down by area:



TOP 5 BAR LIGHTING PICKS

Item Description Manufacturer

1. House lighting Liton Lighting
2. Pendant lighting (above the bar top) Con-Tech Lighting
3. Recessed can lighting (above the bar top) Con-Tech Lighting
4. Task lighting (underbar, above equipment) SuperBrightLEDS.com
5. Accent lighting (bar fronts, soffits) SuperBrightLEDS.com

PURCHASING LED LIGHTING PRODUCTS FOR BARS

The lighting listed in the first three categories above is sold exclusively through commercial factory reps and distributors. In fact, this is how many commercial products are marketed. I’m all for saving a buck, but unless you have a thorough knowledge of commercial lighting you will do yourself a huge injustice by attempting to do this on your own, and the manufacturers know this.

Even though the products offered by Liton and Con-Tech have a more narrow specification range than true architectural lighting offered by other companies, there is still a great deal to know. Thus, when ready to purchase commercial lighting and eventually referred to a distributor, one will receive numerous benefits, such as:

  • The expertise of a true industry lighting professional with years of experience and is willing to share it with you.
  • You will have a greater awareness of the various product options and limitations.
  • Your order will be prepared for you.

A BREAKDOWN OF THE TYPICAL COMMERCIAL LIGHTING PRODUCTS


House lighting

  • When I talk about house lighting, I’m referring to lights used by staff before and after working hours. Recessed lighting consists of two components:

    1). Housing.

    2). Trim. Liton’s 6” LED lighting is very cost-effective.

    The housing I always specify is known as a remodeling housing, which is a housing that doesn’t have to be mounted to overhead structure. This alleviates you from making a minor mistake in the light’s ultimate location.
  •
Photo of Liton 6 inch LED Recessed Lighting
6" recessed LED lighting fixture by Liton

Pendant lighting

Although Liton offers a series of pendant lighting, Con-Tech’s product line is vast, with a large variety of finishes, shapes and sizes, as shown right, and downloadable cut sheets below.

4 inch pendant lighting fixtures by Con-Tech Lighting are among my top picks for best lighting products for bars
4 inch pendant lighting fixtures by Con-Tech Lighting are among my top picks for best lighting products for bars
  • Recessed can lighting
  •
  • Con-Tech Lighting again leads the way, with a large variety of sizes and trims. In fact, Con-Tech offers recessed cans as small as 2”, as shown in the photo at right.
Photo of Con-Tech 2 inch Recessed Lighting Fixture
Photo of Con-Tech 2 inch Recessed Lighting Fixture
  • Task lighting
  •
  • If there’s one area where a consumer is fairly safe to purchase commercial lighting without the guidance of a lighting distributor, I think it’s in the arena of LED strip lighting. SuperBrightLEDS.com makes it super-easy for consumers to shop their site. For underbar lighting, white light is what you need, i.e., RGB LED lighting will not provide you with the adequate lighting in this application. Also, SuperBrightLEDS takes it a step further, by offering mounting brackets (you’ll find these under the accessories tab of each product).
  • Accent lighting
  •
  • Again, SuperBrightLEDS.com is a very reputable source for quality LED lighting products. The RGB LED product I specified above is really great for mounting to soffits. If you want to wash the face of your bar front, simply purchase the Klus 45-ALU Strip Channel (shown in photo at right) and mount it to the bottom of your bar top, about 3” inward.
Photo of Klus 45-ALU LED Mounting Strip
Photo of Klus 45-ALU LED Mounting Strip

WHAT TO KNOW ABOUT ORDERING COMMERCIAL LIGHTING

Even though intermediate commercial lighting is far simpler, make full use of the lighting distributor. When soliciting a quote for bar lighting from a distributor, he/she will list every piece of hardware that it takes to complete your order. For instance, a typical order for track lighting can include upwards of 20 individual parts! In short, your commercial lighting distributor brings a great deal of knowledge and assistance to the table.
